| SeaSonde Configuration: |
|
Standard |
|
Hi - Res |
|
Long - Range |
| Spatial Range (typical) |
|
|
|
|
|
|
| Alongshore: |
|
20-60 km |
|
15-30 km |
|
100-220 km |
| Offshore: |
|
20-75 km |
|
15-20 km |
|
140-220 km |

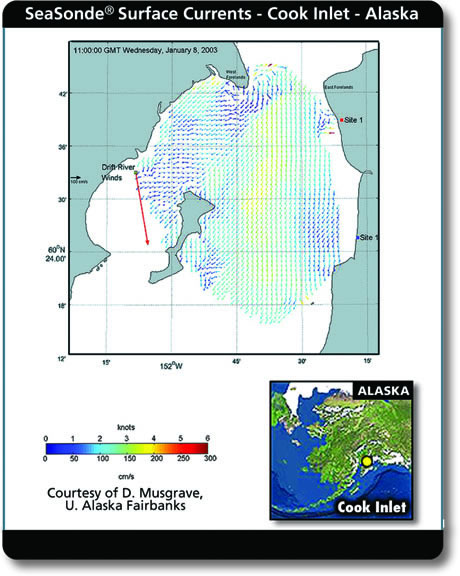

| • Ranges achieved vary with environmental conditions
and antenna placement. Note: Two radars are normally required for creating
2-D surface current maps of direction and speed. |
|
| Range Resolution |
|
500 m - 3 km |
|
200-500 m |
|
3-12 km |
| • Resolution is user selectable |
|
|
|
|
| Angular Resolution: |
|
1-5 degree grid: user selectable. |
|
| Current Accuracy: |
|
|
|
|
|
|
Varies with environment. Comparisons with ADCPs located
in close proximity to the surface are typically < 7 cm/s of the
total current velocity and 1-2 cm/s of the tidal component.
Wavefield Products (measured at each radar): Local on-shore wave conditions
in ring centered ~3 km from coast around each radar. Significant Waveheight:
typical accuracy: 7-15%; Dominant On-Shore Direction: typical accuracy:
5 degrees -12 degrees; Dominant Wave Period: typical accuracy: 0.6 s; Other
spectral wave parameters available. Wave information is limited by environmental
conditions and operating frequency. |
|
| Frequency Range (antennae tuned to operate
at a frequency subband within): |
| |
|
Standard |
|
Hi-Res |
|
Long-Range |
| |
|
one of either: |
|
one of either: |
|
4.3-5.4 MHz |
| |
|
11.5-14 MHz or
24-27 MHz |
|
24-27 MHz or
40-45 MHz |
|
|
| |
|
|
|
|
|
| Equipment Dimensions: |
|
|
|
|
|
|

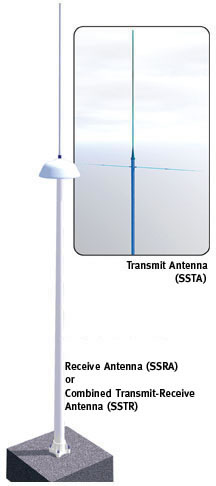

| Transmit Antenna Height: |
|
4.8 m for 11-14 MHz |
|
Combined with RX |
|
12-14 m |
| |
|
2.4 m for 24-27 MHz |
|
|
|
|
| Transmit Antenna Post: |
|
4 m |
|
N/A |
|
N/A |
| |
|
|
|
|
|
|
Receive Antenna System (mast, dome loopstick antenna
unit & vertical element atop dome) approx. total height 7m
Receive Chassis: 13H x 49W x 53D cm. Weight:14 kg
Transmit Chassis: 13H x 49W x 53D cm. Weight:15 kg |
| |
|
|
|
|
|
|
Maximum Distance Between Adjacent Radars:
Recommend 40-60% of the radar's offshore range. |
|
Power Requirements: either 120 VAC or
220 VAC, 50-60 Hz; total onsite
electronics varies between 350 and 500 watts depending upon peripherals
desired
[24 volt DC versions also available] |
Output Radiated Power: 80 watts peak, 40 watts average |
† For complete system specifications, please
consult Technical Specification sheets
available on Company website. |
| VER-20100331 |
