CODAR
OCEAN SENSORS
SeaSonde Transponder
CODAR Product Code: SSTR-101
Product
Description:

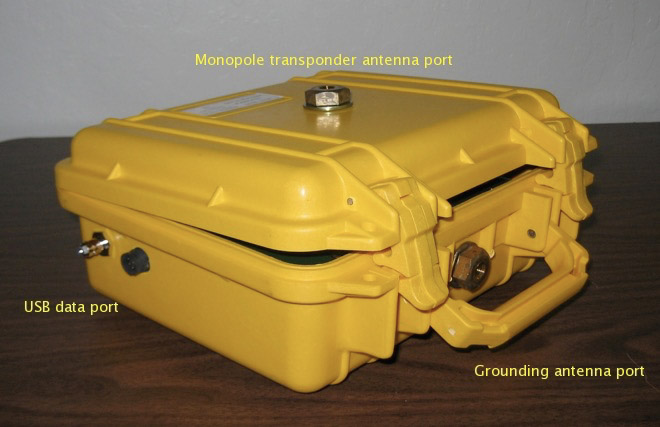

Small, portable transponder used for SeaSonde antenna pattern measurements. The SeaSonde Transponder is built into a water-resistant (not waterproof) case containing transponder electronics and can be used on boat or land. The SSTR-101 (whose electronics can work from 4-50 MHz) comeswith antenna parts suitable for operation at frequencies between 24-50 MHz††.
SSTR-101 Includes:
Transponder, two radial whips, one monopole transmit whip, one standard USB cable, one 12V battery and a 110V/220V charger.
Technical Specifications:
Approximate Dimensions: 11.5” x 4”x 9” (transponder box only)
Approximate Weight: 8lbs.
Recommended Accessory:
††Transponder Extender Kit (CODAR product code SSTR-EX) add-on enables transponder
operation inside the lower SeaSonde frequency bands (from 4- 24 MHz).
|
|
SeaSonde Transponder Extender Kit
CODAR Product Code: SSTR-EX
Product Description:
Transponder Extender Kit includes antenna and associated hardware enabling a SeaSonde transponder (CODAR product code SSTR-101) to measure antenna patterns inside the lower SeaSonde & Long-Range SeaSonde frequency bands (from 4- 24 MHz).
SSTR-EX Includes:
• (1) Antenna Feed
• (1) Four-piece 12MHz transmit whip
• (1) Transmit signal cable
• (1) 20’ grounding cable
• Lug nuts
Recommended Accessory:
The Transponder Extender Kit (CODAR product code SSTR-EX) is designed to work with SeaSonde Transponder (CODAR product code SSTR-101).
† Specifications and appearance are given as
guidelines and may change without notice. |
SSTR-101 & SSTR-EX specifications, v4, rev 12/2016 |
| |
|
|
