ANTENNA BASE HINGE ASSEMBLY†
CODAR Product Code: SSRA-BSHG-A
 |

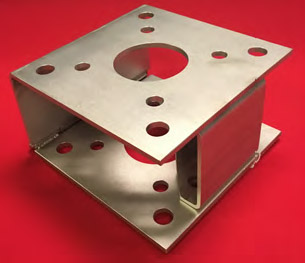

SSRA-BSHG-A antenna hinge
base |
Product
Description:
CODAR designed the SeaSonde Antenna Base Hinge Assembly to ease maintenance and repair work for field technicians. This assembly enables a single operator to more simply lower and upright a SeaSonde antenna. The SeaSonde Antenna Base Hinge Assembly is compatible with the dome-style antennas (receive-only and combined transmit-receive) and long-range transmit antennas. The assembly is both durable and rugged, fabricated of 316 stainless steel. The hinge assembly can be fixed to a variety of footings including a concrete pile or a steel base plate (such as shown in example below). Footings are not included.
 |

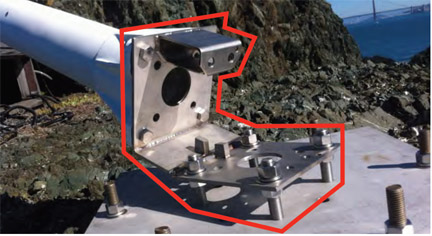

| SSRA-BSHG-A deployed in field with SeaSonde antenna and concrete footing (not included as part of assembly). Items contained within red section are part of SSRA-BSHG-A. |
|
Assembly weight: Approx. 15 lbs.
Assembly Includes:
• Antenna Hinge Base
Base approx. weight: 12 lbs.
Base approx. dimensions:
8” (20cm)L x 8.25” (21cm)W x
4.5” (12cm)H
For attaching dome mast:
• (qty:4) hex bolt 5/8-11x2 1/4
• (qty:4) 5/8-11 nuts
• (qty:4) 5/8 washer
• (qty:4) 5/8 lock washer
• (qty:4) 5/8 jamp nuts
|
For attaching Long-Range
transmit antenna:
• (qty:4) hex bolt 1/2-13 x 2 3/4
• (qty:4) 1/2-13 nuts
• (qty:4) 1/2 washer
• (qty:4) 1/2 lock washer
• (qty:4) 1/2 jam nuts
For fixing the hinge:
• (qty:2) hex bolt 1/2-13x1"
• (qty:2) 1/2-13 nut |
| |
| † Specifications and appearance are given as
guidelines and may change without notice. |
