Uninterruptable Power Supply (UPS) Power Conditioning Unit
with
Battery Array
CODAR Product Code: UPS1500-6B-120V
or UPS1500-6B-220V
Product
Description:
An
Uninterruptible Power Supply (UPS) connecting the SeaSonde
unit to power source (e.g. wall plug) will
provide a layer of protection to electronics from power
surges that come from power line and also provide for
continued quality performance through power fluctuations
(sometimes referred to as “brownouts”). UPS
is rated
at least 1500VA (1050 watts).
To provide power to SeaSonde when normal power is not
available (sometimes
referred to as a “blackout”) the UPS, connected
to a 6-battery array will provide
power for continued operation. The UPS & Battery
Array will supply 500 watts
for approximately 8 hours.

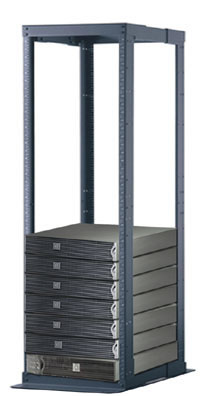

A sturdy 19” equipment rack (CODAR Product Code
RACK1) is included with
the UPS with 6-battery array. This equipment rack will
hold UPS and all 6 batteries,
with space available for mounting SeaSonde remote unit
electronics.
The UPS with Battery Array is intended to only provide
power conditioning and
emergency power to the SeaSonde. Neither air-conditioning
unit nor any other
electronics operating at site should be connected to
the UPS with Battery Array.
Note: SeaSonde will auto-shutoff if internal chassis
temperatures exceed
safe levels, to avoid heat damage, and will continue
to attempt restarting
itself until safe operating temperatures have returned.
UPS with Battery Array and equipment rack are intended
for indoor use only.
|
CODAR Product Code: UPS1500-6B† |
UPS
Features: 1050 Watts
/ 1500 VA, Interface Port DB-9 RS-232, Extended
runtime model, Rack Height 2 U
Select from one of:
CODAR Product Code UPS1500-6B-120V, Input 120V / Output
120V,
CODAR Product Code UPS1500-6B-220V, INput 220V, Output
220V
Includes: CD with software, Documentation CD, Installation
guide, Smart UPS signaling RS-232 cable,
USB cable, User Manual
Battery Features (Per Battery)
Cascading capabilities: Horizontal console port servers
can be cascaded to manage up to 1,024 devices.
Rack Mount: 1U rackmountable. Hardware included.
Intelligent Battery Management: Maximizes battery performance,
life, and reliability through intelligent, precision
charging.
Hot Pluggable Operation: Add or remove servers without
having to power off the switch.
Internal Hot Swap Batteries
Equipment Rack Features
Fits standard 19” wide electronics.
Power Strip Included.
Height (when assembled): approx. 2 meters
Weight: approx. 45 KG (100 lbs.)
UPS1500-6B Total Product Weight (UPS, batteries & equipment
rack): approx. 227 KG (500 lbs.) |
UPS1500-6B-120V
Technical Specifications†
|
UPS
Technical Specifications
UPS Output
Output Power Capacity: 1050 Watts / 1500 VA
Max Configurable Power: 1050 Watts / 1500 VA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 3% at full load
Output Frequency (sync to mains): 50/60 Hz +/-
3Hz user adjustable +/- 0.1
Crest Factor: up to 5 : 1
Waveform Type: Sine wave
Output Connections: (6) NEMA 5-15
Bypass: Built-in bypass
UPS Input
Nominal Input Voltage: 120V
Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
Input Connections: NEMA 5-15P
Cord Length: 1.83 meters
Input voltage range for main operations: 92 - 147V
Input voltage adjustable range for main operations: 90 - 150V
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte
: leakproof
Typical recharge time: 3 hour(s)
Typical Backup Time at Half Load: 22.2 minutes (525 Watts)
Typical Backup Time at Full Load: 8.6 minutes (1050 Watts)
Communications & Management
Interface Port(s): DB-9 RS-232, Smart-Slot, USB
Available SmartSlot™ Interface Quantity: 1
Control panel: LED status display with load and battery
bar-graphs and On Line : On Battery : Replace
Battery : and Overload Indicators, LED status display
with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm: Alarm when on battery : distinctive
low battery alarm : configurable delays
Emergency Power Off (EPO): Yes
Surge Protection & Filtering
Surge energy rating: 540 Joules
Filtering: Full time multi-pole noise filtering : 0.3%
IEEE surge let-through : zero clamping response
time : meets UL 1449
Physical Dimensions
Maximum Height: 432.00 mm
Maximum Width: 85.00 mm
Maximum Depth: 559.00 mm
Rack Height: 2U
Net Weight: 27.5 KG
Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-3000 meters
Storage Temperature: -20 - 50 °C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-15000 meters
Audible noise at 1 meter from surface of unit: 45.00 dBA
Online Thermal Dissipation: 393.00 BTU/hr |
Battery
Technical Specifications
Battery Unit Output
Battoutvolt: 48
Internal Batteries & Runtime
Battery Volt-Amp-Hour Capacity: 864
Battery Type: Maintenance-free sealed Lead-Acid
battery with suspended electrolyte : leakproof
Battery mounting: Enclosed battery cabinet
Expected Battery Life (years): 3 - 5
Included Battery Modules: 2
RBC™ Quantity: 2
Battery blocks per string: 4
Physical (Per battery)
Net Weight: 32.91 KG
Maximum Height: 45200 mm
Maximum Width: 86.00 mm
Maximum Depth: 559.00 mm
Rack Height: 2U
Environmental
Operating Environment: 0 - 40 °C
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-3000 meters
Storage Temperature: -20 0 50 °C
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-15000 meters
Equipment Rack Technical Specifications
Net Weight: approx. 45 KG
Maximum Height: 2055.00 mm
Maximum Width: 523.00 mm
Maximum Depth: 749.00 mm
Weight Capacity (static load): 454 KG
Minimum Mounting Depth: 740.00 mm
Maximum Mounting Depth: 740.00 mm
Rack Height: 43U
† Actual product provided may vary from technical
specifications and images shown here. |
†Specifications and appearance are given as guidelines
and may change without notice.
SeaSonde Information & Specifications - version 1 created
12/2008
|
| |
|
|
